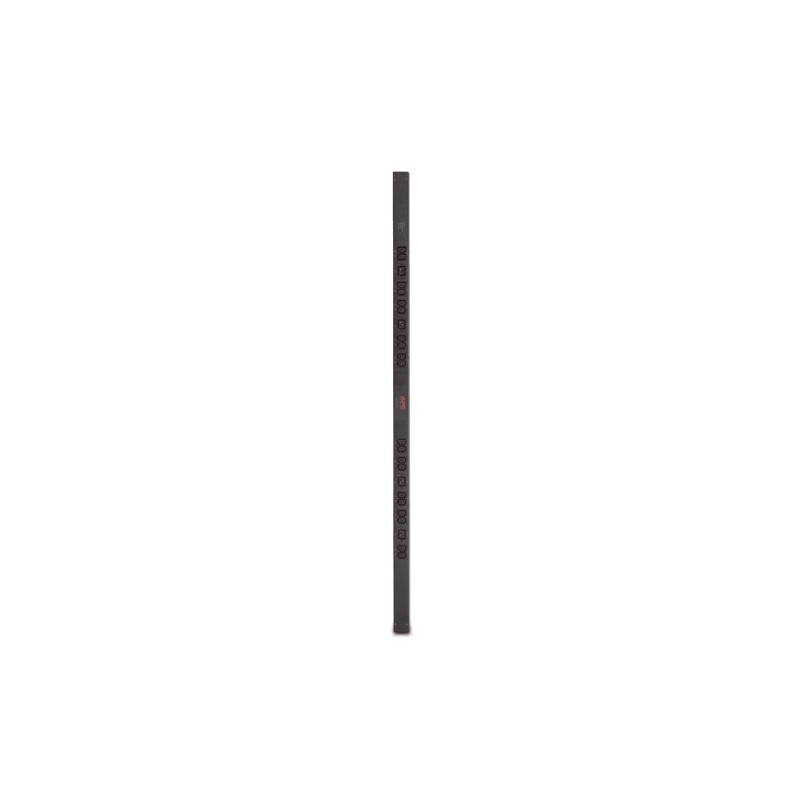

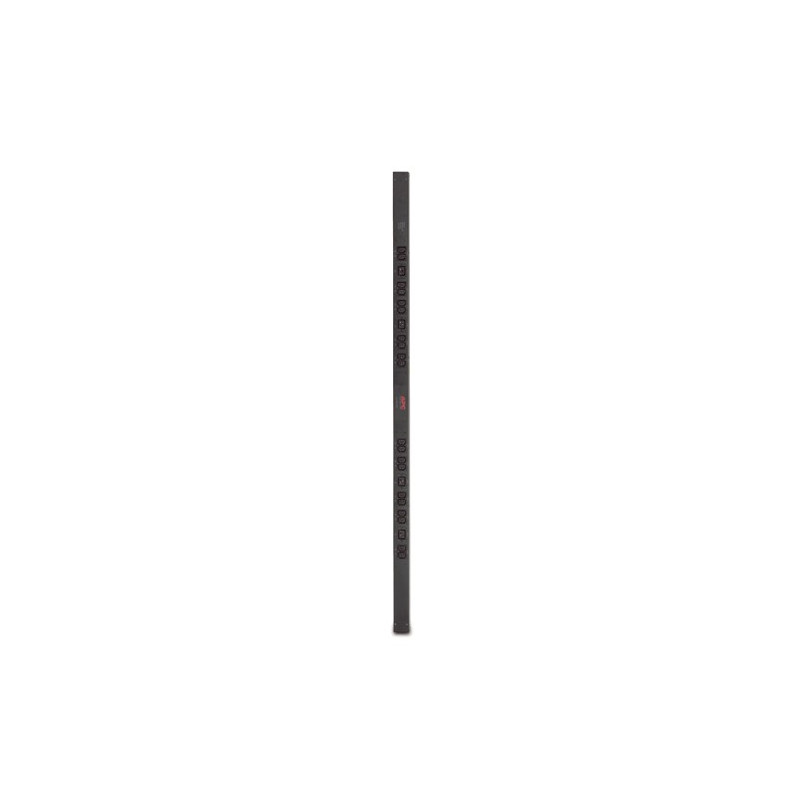

APC Basic Rack PDU

Data sheet

Cable length

3.05 m

Certification

CCC, CE, VDE

Colour of product

Black

Dimensions (WxDxH)

56 x 44 x 1619 mm

Input connection type

IEC 309 16A

Input frequency

47 - 63 Hz

Maximum input current per phase

63 A

Maximum total current draw per phase

400 A

Nominal input voltage

83 - 159 VAC

Nominal output voltage

400V

Operating relative humidity (H-H)

5 - 95 %

Operating relative humidity range

5 - 95 %

Operating temperature (T-T)

8 - 35 °C

Operating temperature range (T-T)

-5 - 45 °C

Output connections

20x IEC 320 C13
4x IEC 320 C19

Package dimensions (WxDxH)

152 x 127 x 2134 mm

Package weight

6480 g

Source data-sheet

Icecat.biz

Storage relative humidity (H-H)

5 - 95 %

Storage relative humidity range

5 - 95 %

Storage temperature (T-T)

8 - 85 °C

Storage temperature range (T-T)

-25 - 65 °C

Weight

5570 g

Specific References

EAN13

0731304230397
