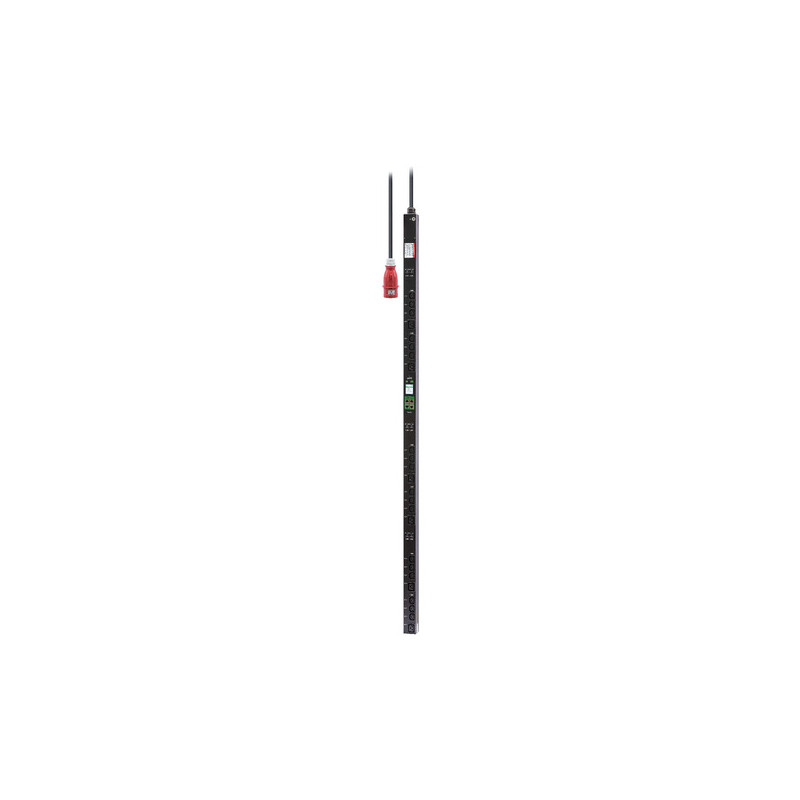

APC EPDU2232SMBO
Easy Rack PDU, Switched Metered Outlet, 0U, 3 Phase, 22kW, 230V, 32A, (18) C13 and (6) C19 outlets, IEC60309 3P+N+PE inlet
Local Current Monitoring Display
The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.
Network Port Sharing
Connect and manage multiple PDUs from one IP address to simplify and speed deployment while saving the cost required in having a dedicated network connection for each PDU. Manage up to 32 PDUs with 9000 series and up to 4 PDUs with 8000 series.
Flash Upgradeable
Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released.
Network Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web and SNMP. Allows users to access, configure, and manage rack PDUs from remote locations to save valuable time.
Remote Individual Outlet Control
Remotely manage outlets so users can turn outlets off that are not in use (prevent overloads) or recycle power to locked-up equipment (minimize costly downtime and avoid travel time to equipment).
Outlet Power Sequencing
Allows users to configure the sequence in which power is turned on or off for each outlet. This helps avoid in-rushes at start-up, which can cause overloaded circuits and dropped loads. Sequencing also allows users to predetermine which piece of equipment is turned on first so other equipment dependant on that unit will function properly.
The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.
Network Port Sharing
Connect and manage multiple PDUs from one IP address to simplify and speed deployment while saving the cost required in having a dedicated network connection for each PDU. Manage up to 32 PDUs with 9000 series and up to 4 PDUs with 8000 series.
Flash Upgradeable
Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released.
Network Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web and SNMP. Allows users to access, configure, and manage rack PDUs from remote locations to save valuable time.
Remote Individual Outlet Control
Remotely manage outlets so users can turn outlets off that are not in use (prevent overloads) or recycle power to locked-up equipment (minimize costly downtime and avoid travel time to equipment).
Outlet Power Sequencing
Allows users to configure the sequence in which power is turned on or off for each outlet. This helps avoid in-rushes at start-up, which can cause overloaded circuits and dropped loads. Sequencing also allows users to predetermine which piece of equipment is turned on first so other equipment dependant on that unit will function properly.
Data sheet
- AC input frequency
- 50/60 Hz
- AC outlet types
- C13 coupler,C19 coupler
- AC outlets quantity
- 24 AC outlet(s)
- Cable length
- 3 m
- Depth
- 56 mm
- Display
- LCD
- Ethernet LAN (RJ-45) ports
- 1
- Height
- 1800 mm
- Housing material
- Zinc steel
- Load capacity
- 22000 VA
- Maximum current
- 32 A
- Mounting
- vertical
- Nominal input voltage
- 400 V
- Operating altitude
- 0 - 15000 m
- Operating relative humidity (H-H)
- 5 - 95 %
- Operating temperature (T-T)
- -5 - 45 °C
- Output voltage
- 200-240 V
- Package height
- 2030 mm
- Package weight
- 9850 g
- PDU types
- Metered,Switched
- Power plug
- IEC 60309
- Power protection features
- Overload
- Rack capacity
- 0U
- Source data-sheet
- Icecat.biz
- Storage relative humidity (H-H)
- 5 - 95 %
- Storage temperature (T-T)
- -25 - 65 °C
- Type
- ZIP
- USB ports quantity
- 1
- Weight
- 8680 g
- Width
- 55 mm
- Product colour
- Black
Specific References
- EAN13
- 0731304733478
