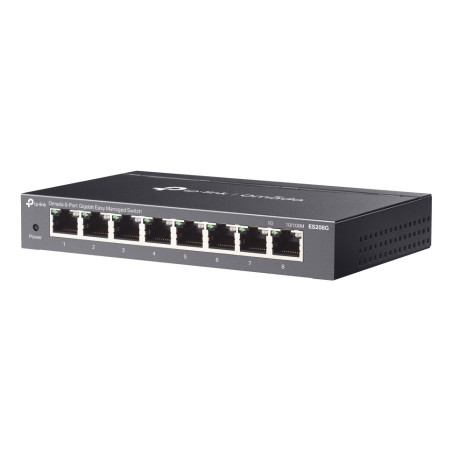

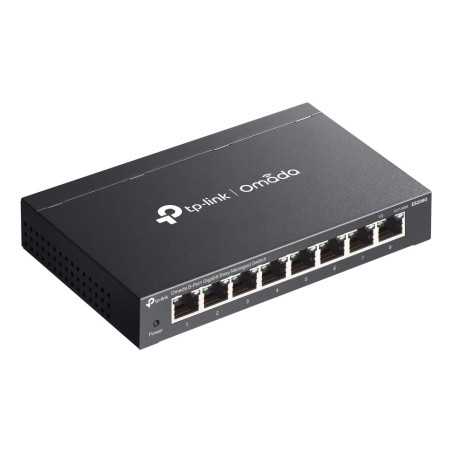

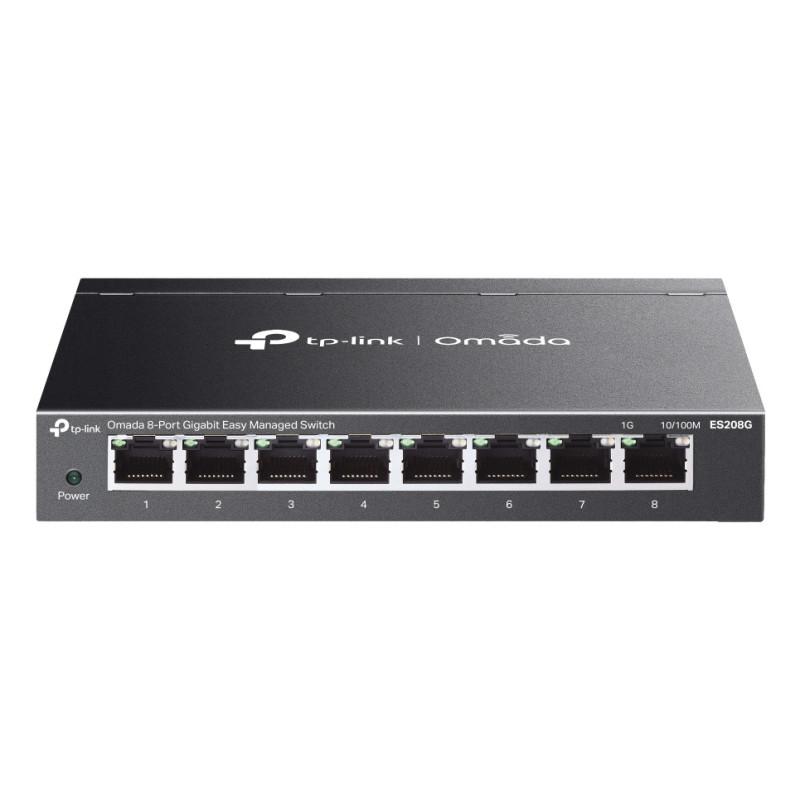

TP-Link ES208G

Name: TP-Link ES208G
Brand: TP-Link
SKU: ES208G

TP-Link Omada ES208G, Managed, L2, Gigabit Ethernet (10/100/1000), Wall mountable

In Stock

Reasons to Buy

8× 10/100/1000Mbps RJ45 ports
Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
Centralized Cloud Management via the web or the Omada app†
VLAN, Port Isolation, Cable Test△, QoS△ for reliable surveillance networking
Automatic Loop Prevention and IGMP Snooping
Fanless design for silent operation
Durable metal casing and desktop/wall mounting design

Technical Headlines

Managed L2 Web-based management
Quality of Service (QoS) support
Basic switching RJ-45 Ethernet ports quantity: 8
MAC address table: 8000 entries Switching capacity: 16 Gbit/s
DC Power supply included

Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management

Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

Brand TP-Link

Reference ES208G

Data sheet

10G support: No
AC adapter included: Yes
Auto MDI/MDI-X: Yes
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Depth: 100.7 mm
Firmware upgradeable: Yes
Flash memory: 64 MB
Flow control support: Yes
Gigabit Ethernet (copper) ports quantity: 8
Heat dissipation: 9.09 BTU/h
Height: 25.4 mm
Input current: 0.6 A
LED indicators: Yes
MAC address table: 8000 entries
Mean time between failures (MTBF): 1141726 h
Networking standards: IEEE 802.3ab, IEEE 802.1ab, IEEE 802.3i, IEEE 802.1p, IEEE 802.3x, IEEE 802.3at, IEEE 802.1Q
Number of VLANs: 32
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): -5 - 45 °C
Packet buffer memory: 4 MB
Power over Ethernet (PoE): No
Power source: DC
Quality of Service (QoS) support: Yes
Rack mounting: No
Source data-sheet: Icecat.biz
Stackable: No
Storage relative humidity (H-H): 5 - 90%
Storage temperature (T-T): -40 - 70 °C
Store-and-forward: Yes
Switch layer: L2
Switch type: Managed
Switching capacity: 16 Gbit/s
User guide: Yes
Web-based management: Yes
Width: 158 mm
Product colour: Black
Fanless: Yes
Cloud-managed: Yes
Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
Unified static configuration: Yes
