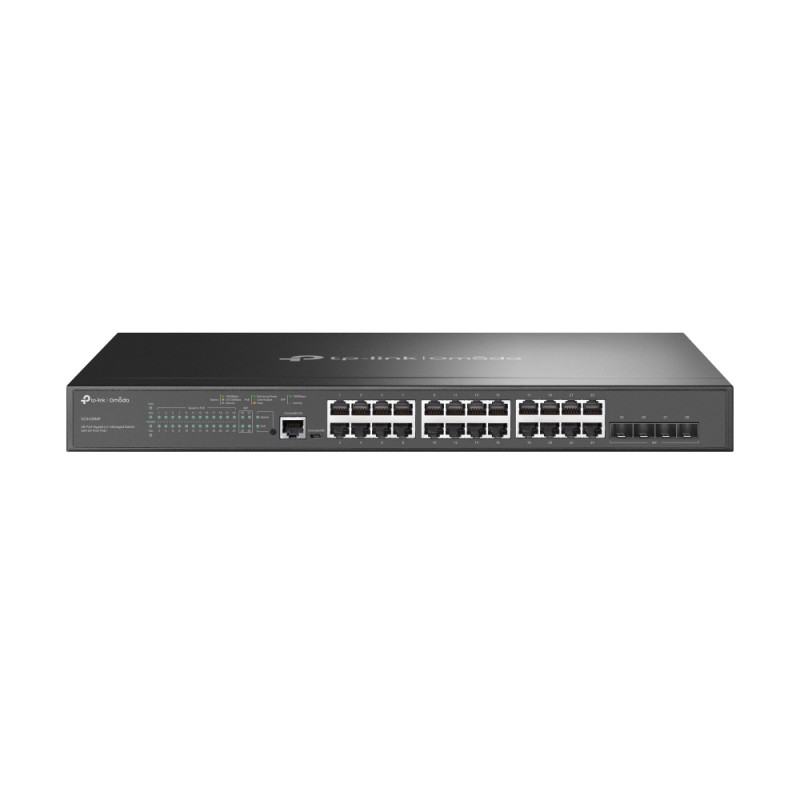

TP-Link Omada 28-Port Gigabit L2+ Managed Switch with 24-Port PoE+
TP-Link Omada 28-Port Gigabit L2+ Managed Switch with 24-Port PoE+, Managed, L2+, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
Reasons to Buy
Technical Headlines
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static
routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The IP-MAC-Port
Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-ofService (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM and DDM functions help facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ managed Switches provide a reliable, secure solution for enterprise, campus and ISP networks.
- 24× Gigabit 802.3af/at PoE+ ports and 4× Gigabit SFP slots
- 384 W total PoE budget with up to 30 W PoE output per port
- Centralized cloud management via the web or the Omada app
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Durable metal casing and rack-mountable design
Technical Headlines
- Managed L2+ Web-based management SNMPv1/v2c/v3, LLDP/LLDP-MED
- Quality of Service (QoS) support Configuring Location Settings (CLI)
- Basic switching RJ-45 Ethernet ports quantity: 24 Console port: RJ-45/Micro-USB
- 10BASE-T, 1000BASE-T
- MAC address table: 16000 entries Switching capacity: 56 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting
- AC Power supply included Power over Ethernet (PoE)
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static
routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The IP-MAC-Port
Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-ofService (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM and DDM functions help facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ managed Switches provide a reliable, secure solution for enterprise, campus and ISP networks.
sg3428mp
Data sheet
- 10G support
- No
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100 - 240 V
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Certification
- CE, FCC, RoHS
- Copper ethernet cabling technology
- 10BASE-T, 1000BASE-T
- Depth
- 330 mm
- Heat dissipation
- 1637.14 BTU/h
- Height
- 990mm
- MAC address table
- 96000 entries
- Management protocols
- SNMPv1/v2c/v3, LLDP/LLDP-MED
- Networking standards
- IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
- Number of VLANs
- 8000
- Operating temperature (T-T)
- 8 - 35 °C
- Power source
- PoE, DC, AC
- Security algorithms
- WPS,WPS-PBC,WPA,WPS-PIN,WPA2
- Storage temperature (T-T)
- 8 - 85 °C
- Switch layer
- L7
- Switching capacity
- 993.6 Gbps
- Width
- 993 mm
- Product colour
- White,Black
Specific References
- EAN13
- 6935364010737
