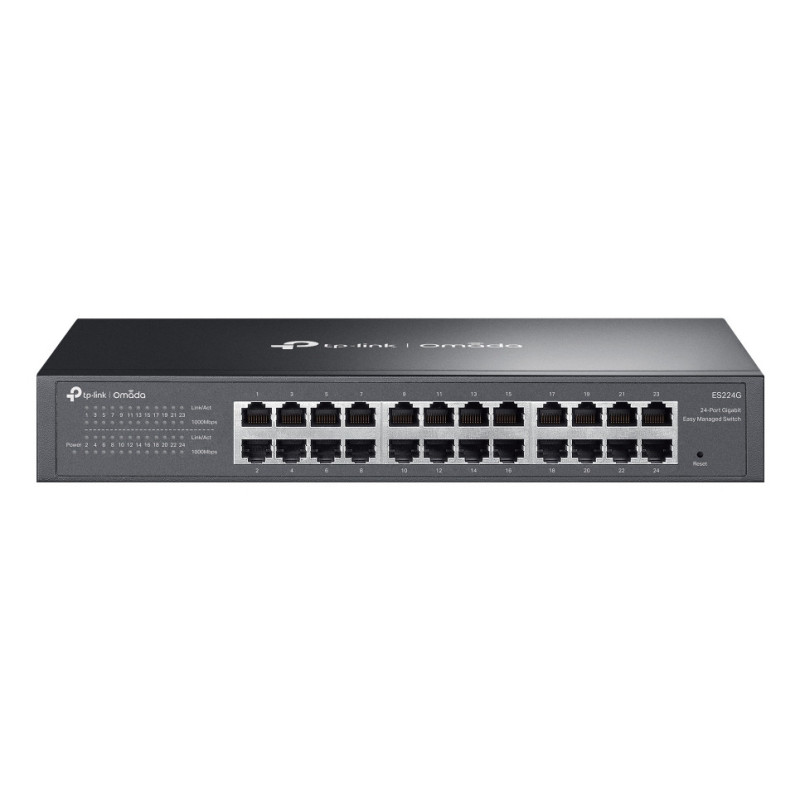

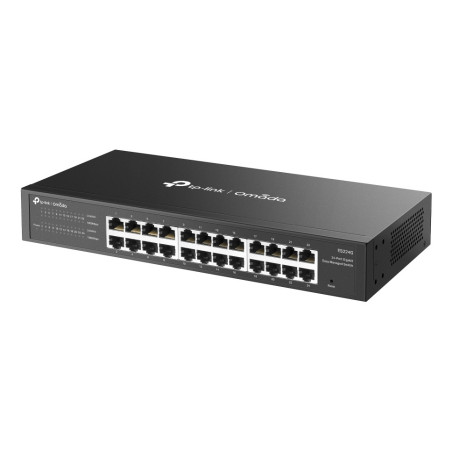

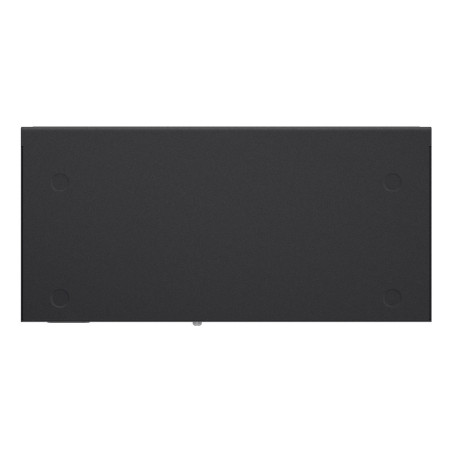

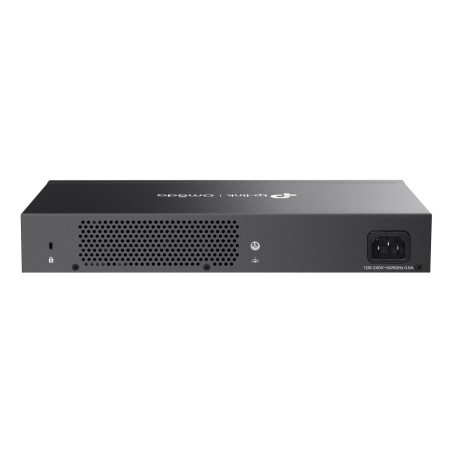

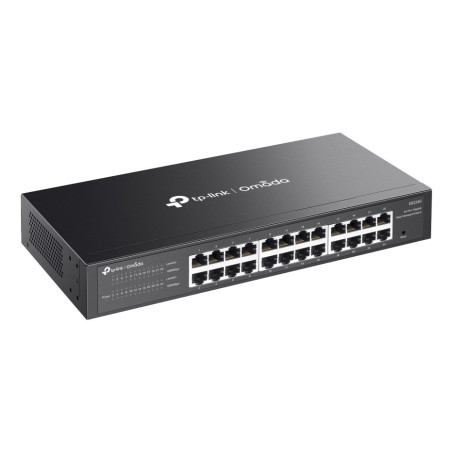

TP-Link ES224G
TP-Link Omada ES224G, Managed, L2, Gigabit Ethernet (10/100/1000), Rack mounting
Reasons to Buy
Technical Headlines
Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
- 24× 10/100/1000Mbps RJ45 ports
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- VLAN, Port Isolation, Cable Test△, QoS△ for reliable surveillance networking
- Automatic Loop Prevention and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/rack mounting design
Technical Headlines
- Managed L2 Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 24
- MAC address table: 8000 entries Switching capacity: 48 Gbit/s
- Rack mounting
- AC Power supply included
Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
Data sheet
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100 - 240 V
- Auto MDI/MDI-X
- Yes
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Cables included
- AC
- Depth
- 140 mm
- Firmware upgradeable
- Yes
- Flow control support
- Yes
- Gigabit Ethernet (copper) ports quantity
- 24
- Height
- 44 mm
- MAC address table
- 8000 entries
- Number of VLANs
- 32
- Operating relative humidity (H-H)
- 10 - 90%
- Operating temperature (T-T)
- -5 - 50 °C
- Packet buffer memory
- 4 MB
- Power source
- AC
- Quality of Service (QoS) support
- Yes
- Rack mounting
- Yes
- Source data-sheet
- Icecat.biz
- Storage relative humidity (H-H)
- 5 - 90%
- Storage temperature (T-T)
- -40 - 70 °C
- Store-and-forward
- Yes
- Switch layer
- L2
- Switch type
- Managed
- Switching capacity
- 48 Gbit/s
- User guide
- Yes
- Web-based management
- Yes
- Width
- 294 mm
- Product colour
- Black
- Fanless
- Yes
- Cloud-managed
- Yes
- Compliance certificates
- CE, Federal Communications Commission (FCC), RoHS
- Unified static configuration
- Yes
Specific References
- EAN13
- 1210002600712
