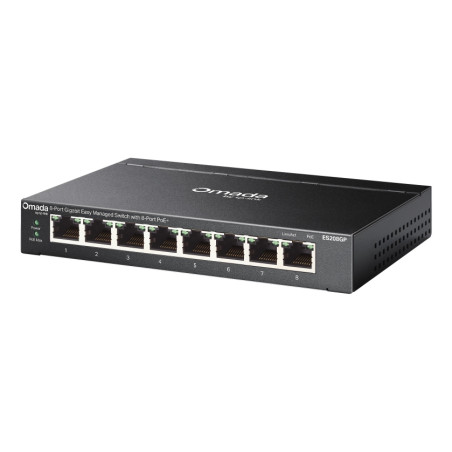

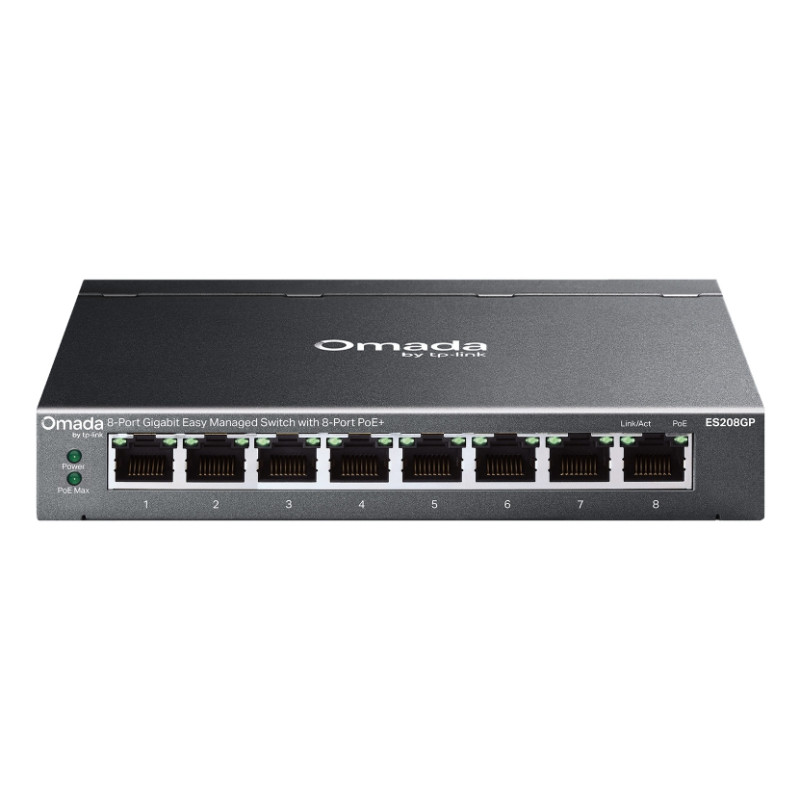

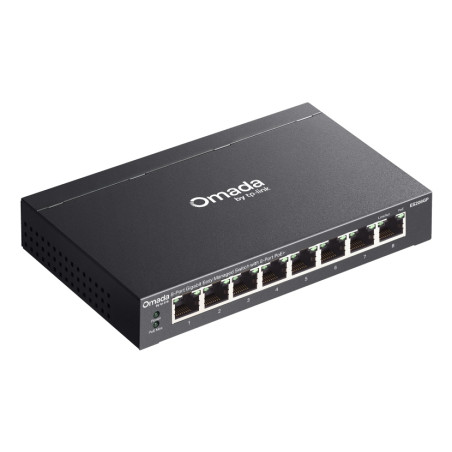

TP-Link ES208GP

TP-Link Omada ES208GP, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, DIN rail
In Stock
Reference: ES208GP

Require Project Pricing?

Click here to email your parts list and we will send you a quote
Reasons to Buy
  • 8× 10/100/1000Mbps RJ45 ports (8× 802.3af/at-compliant PoE+)
  • 64W Power Budget, with up to 30W for each PoE port*
  • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
  • Centralized Cloud Management via the web or the Omada app†
  • Up to 820ft PoE**, Remote Camera Reboot†, QoS, and Port Isolation for reliable surveillance networking
  • Automatic Loop Prevention, VLAN, and IGMP Snooping
  • Fanless design for silent operation

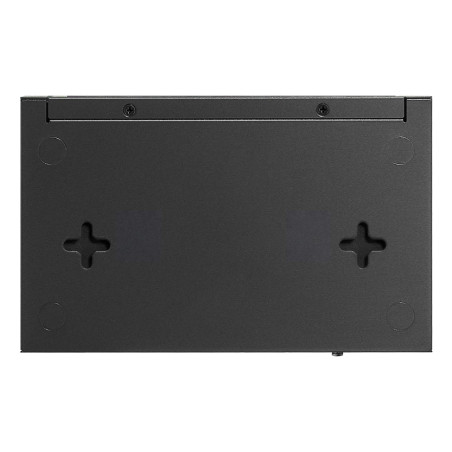

  • Durable metal casing and desktop/wall mounting design


Technical Headlines
  • Managed L2 Web-based management
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • MAC address table: 8000 entries Switching capacity: 16 Gbit/s
  • DIN rail Rack mounting
  • DC Power over Ethernet (PoE)


TP-Link

Data sheet

10G support
No
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Cables included
Power
Depth
100.7 mm
Ethernet LAN data rates
10,100,1000 Mbit/s
Flow control support
Yes
Form factor
DIN rail
Height
25.4 mm
Input current
1.31 A
LED indicators
Yes
MAC address table
8000 entries
Networking standards
IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Number of VLANs
4000
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Packet buffer memory
0.5 MB
Power over Ethernet (PoE)
Yes
Power source
DC
Quality of Service (QoS) support
Yes
Quick start guide
Yes
Rack mounting
Yes
Source data-sheet
Icecat.biz
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Store-and-forward
Yes
Switch layer
L2
Switch type
Managed
Switching capacity
16 Gbit/s
Transmission distance (max)
0.25 km
Web-based management
Yes
Width
158 mm
Product colour
Black
Cloud-managed
Yes
Power over Ethernet (PoE) type supported
PoE+
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS

Specific References

EAN13
0840460603607
