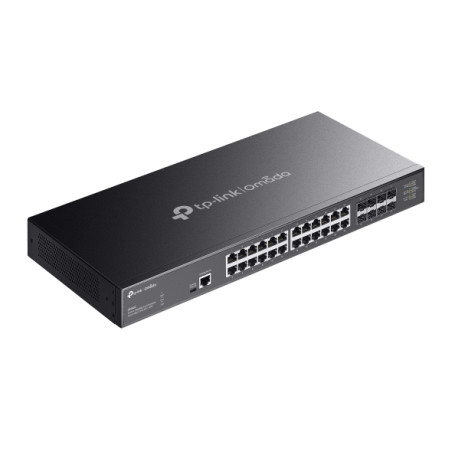

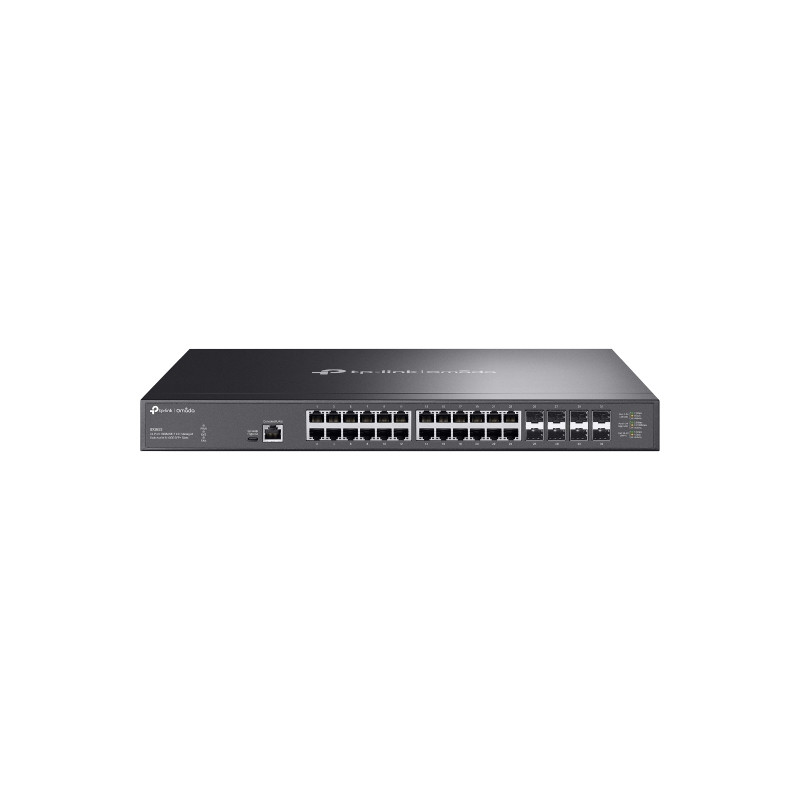

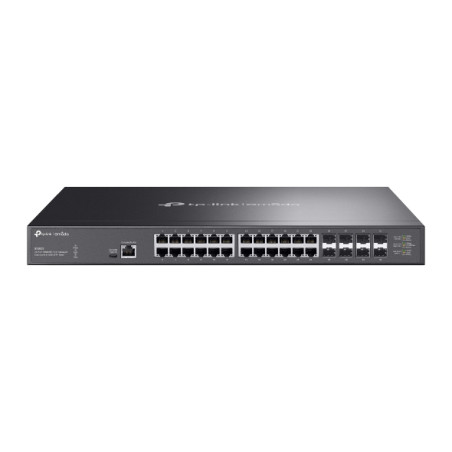

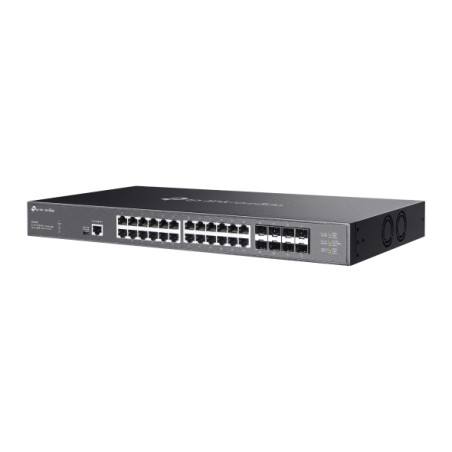

TP-Link Omada 24-Port 10GBASE-T L2+ Managed Switch with 8 10GE SFP+ Slots
TP-Link Omada 24-Port 10GBASE-T L2+ Managed Switch with 8 10GE SFP+ Slots, Managed, L2/L2+, 10G Ethernet (100/1000/10000), Rack mounting, 1U
Reasons to Buy
Technical Headlines
Omada 24-Port 10GBASE-T
L2+ Managed Switch with 8
10GE SFP+ Slots
- 24× 1/2.5/5/10 Gbps RJ45 Ports
- 8× 10 Gbps SFP+ Slots
- Centralized Management
- Omada App
- Zero-Touch Provisioning
- Ethernet Ring Protection Switching
- Static Routing
- Traffic Separation
- 24× 1/2.5/5/10 Gbps RJ45 ports
- 8× 1/10 Gbps SFP+ slots
- 640 Gbps switching capacity
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Durable metal casing and rack-mountable design
Technical Headlines
- Managed L2/L2+ Web-based management
- Quality of Service (QoS) support Configuring Location Settings (CLI)
- Basic switching RJ-45 Ethernet ports quantity: 24 Console port: RJ-45/USB Type-C
- 10G support
- MAC address table: 32000 entries Switching capacity: 640 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting Stackable
- AC Power supply included
Omada 24-Port 10GBASE-T
L2+ Managed Switch with 8
10GE SFP+ Slots
- 24× 1/2.5/5/10 Gbps RJ45 Ports
- 8× 10 Gbps SFP+ Slots
- Centralized Management
- Omada App
- Zero-Touch Provisioning
- Ethernet Ring Protection Switching
- Static Routing
- Traffic Separation
Data sheet
- 10G support
- Yes
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100 - 240 V
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Basic switching RJ-45 Ethernet ports type
- 10G Ethernet (100/1000/10000)
- Cables included
- AC, LAN (RJ-45)
- Depth
- 220 mm
- Ethernet LAN data rates
- 10,100 Mbit/s
- Flow control support
- Yes
- Form factor
- 1U
- Heat dissipation
- 363.23 BTU/h
- Height
- 44 mm
- LED indicators
- Yes
- MAC address table
- 32000 entries
- Networking standards
- IEEE 802.3az
- Operating relative humidity (H-H)
- 10 - 90%
- Operating temperature (T-T)
- -5 - 50 °C
- Packet buffer memory
- 24 MB
- Power over Ethernet (PoE)
- No
- Power source
- AC
- Quality of Service (QoS) support
- Yes
- Quick start guide
- Yes
- Rack mounting
- Yes
- Source data-sheet
- Icecat.biz
- Spanning tree protocol
- Yes
- Stackable
- Yes
- Storage relative humidity (H-H)
- 5 - 90%
- Storage temperature (T-T)
- -40 - 70 °C
- Switch layer
- L2/L2+
- Switch type
- Managed
- Switching capacity
- 640 Gbit/s
- Web-based management
- Yes
- Width
- 440 mm
- Product colour
- Black
- Cloud-managed
- Yes
Specific References
- EAN13
- 0810142821445
