P-Link TL-SG108PE
  • P-Link TL-SG108PE
  • P-Link TL-SG108PE
  • P-Link TL-SG108PE
  • P-Link TL-SG108PE

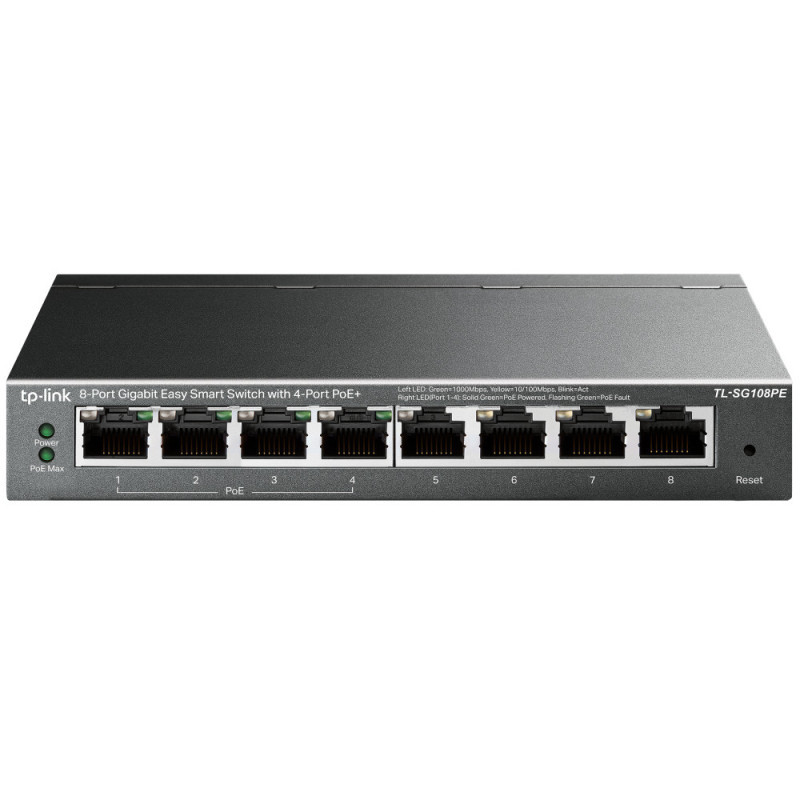

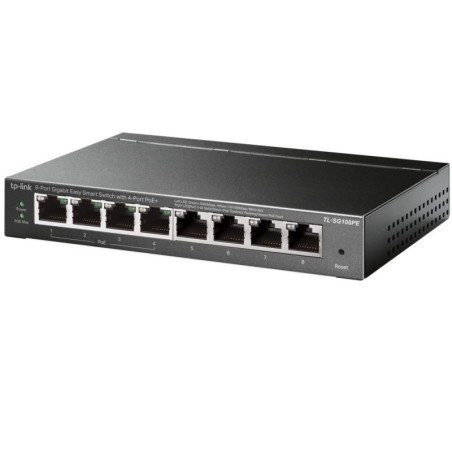

TP-Link TL-SG108PE

TP-Link TL-SG108PE, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)
In Stock
Reference: TL-SG108PE
Reasons to Buy
  • Eight 10/100/1000Mbps RJ45 ports
  • Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data and power can be transferred on one single cable
  • Supports PoE power up to 64W for all PoE ports
  • Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
  • Simple network set-up on top of plug-and-play connectivity
  • Web-based user interface and Easy Smart Configuration Utility simplify configuration


Technical Headlines
  • Managed L2
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • MAC address table: 4000 entries Switching capacity: 16 Gbit/s
  • Power supply included Power over Ethernet (PoE)


he TL-SG108PE is an 8-port Gigabit Easy Smart Switch with 4 PoE ports, represents a powerful upgrade from an unmanaged switch. It is designed specically for small businesses that require simple network management and PoE function. The TL-SG108PE can connect and power up to four PoE devices, such as wireless access points (APs), IP cameras, and IP phones. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, trafc prioritization, and enhanced QoS. Additionally, with port-based, tag-based and MTU VLAN, TL-SG108PE can improve security and meet more network segmentation requirements.
Power Over Ethernet

4 of the 8 Auto-Negotiation RJ45 ports (port 1 to port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
Effective Management

TL-SG108PE offers network monitoring for users to observe trafc behavior. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, trafc prioritization, and enhanced QoS. With Port Mirroring, Loop Prevention and Cable Diagnostics features, TL-SG108PE can identify and even locate connection problems on your business network. Moreover, administrators can designate the priority of the trafc based on Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and lag-free. Additionally, to improve security and network performance, TL-SG108PE supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions. TL-SG108PE is an upgrade from the plug-and-play Unmanaged Switch, delivering great value while empowering your network and similarly delivering great value to the end user.
Easy to Use

TL-SG108PE is easy to use and manage. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Its compact size makes it ideal for desktops with limited space while also being Rack-mountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.
TP-Link
TL-SG108PE

Data sheet

10G support
No
AC input frequency
50 Hz
AC input voltage
220 V
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Cables included
AC
Certification
FCC, CE, RoHS
Depth
101 mm
Height
25 mm
Input current
1.25 A
LED indicators
Activity, Link, PoE, Power, Speed, Status
MAC address table
4000 entries
Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Number of VLANs
32
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Packet buffer memory
1.5 MB
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
4
Rack mounting
No
Source data-sheet
Icecat.biz
Storage relative humidity (H-H)
5 - 95%
Storage temperature (T-T)
-40 - 70 °C
Store-and-forward
Yes
Switch layer
L2
Switch type
Managed
Switching capacity
16 Gbit/s
User guide
Yes
Width
158 mm
Product colour
Black
Harmonized System (HS) code
85176990

Specific References

EAN13
1210002616959

TL-SG108PE.pdf

TP-Link TL-SG108PE Data Sheet

Download (366.81KB)
