D-Link D-Link 8-Port Fast Ethernet Unmanaged Desktop Switch

D-Link 8-Port Fast Ethernet Unmanaged Desktop Switch, Unmanaged, Full duplex
In Stock
Reference: DES-108/B
Technical Headlines
  • Unmanaged
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • 100BASE-TX, 10BASE-T
  • MAC address table: 1000 entries Switching capacity: 1.6 Gbit/s
  • DC

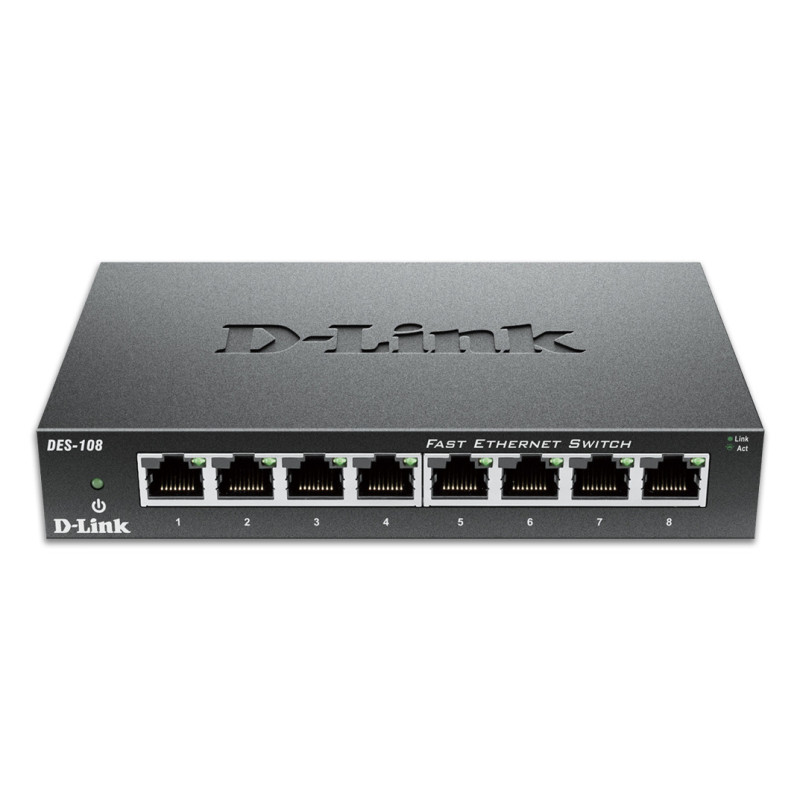

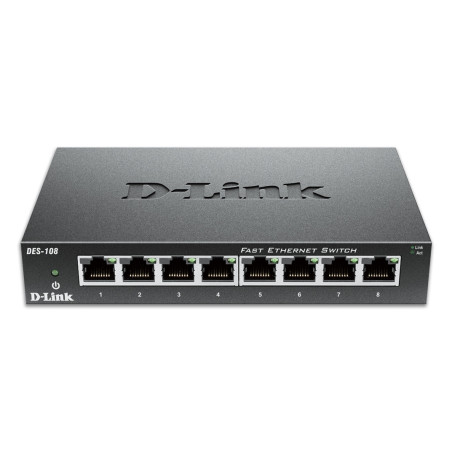

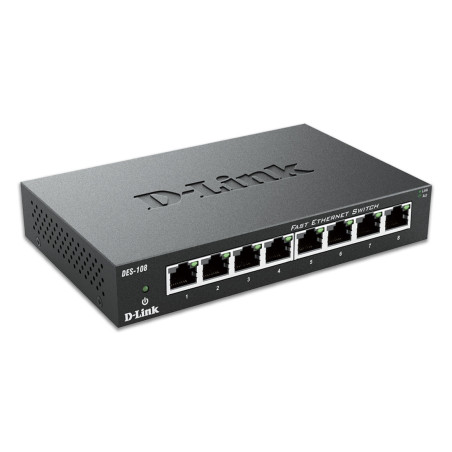

D-Link’s DES-108 Fast Ethernet switch provides a cost-effective way for SOHO and SMB to create a small network and connect computers, wireless Access Points, IP cameras, network printers and other Ethernet devices quickly and easily without complicated configurations. This switch comes with 8 Fast Ethernet ports with an auto-sensing function to detect the maximum speed of the connected devices, allowing you to run your network with the best possible performance. Its fanless design makes the DES-108 completely silent so it is ideal for offices, libraries or meeting rooms.

The DES-108 8-Port Fast Ethernet Unmanaged Desktop Switch is a 8-port 10/100 Mbps Fast Ethernet switch that allows you to quickly set up a wired network. Connect the DES-108 to multiple computers together to share files and folders, or connect it to a router to share an Internet connection.

Auto-Sensing 10/100 Ports

The DES-108 uses auto-sensing 10/100 Mbps ports, allowing a small workgroup to flexibly connect to Ethernet and Fast Ethernet devices to create an integrated network. These ports detect the network speed and auto-negotiate between 10BASE-T and 100BASE-TX, as well as between full and half-duplex, allowing you to get the maximum speed possible for each device connected to your network.

Auto MDI/MDIX Crossover

All of the ports on the DES-108 support automatic MDI/MDIX crossover, eliminating the need for crossover cables or uplink ports. Each port can be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables. In addition, the DES-108 features multiple front, easy-to-access Ethernet ports with two colour LED indicators per port to easily distinguish link status.

Flow Control for Secure Transmission

When a port reaches its receiving buffer capacity, the 802.3x flow control feature activates to minimize dropped packets. By minimizing the number of dropped packets, the switch provides a more reliable connection for all of your connected devices while surfing the web, playing games, or accessing media.

Think Green

The DES-108 is a plug-and-play networking switch that offers D-Link’s Green Technology to save energy and reduce heat, which in turn extends product life without sacrificing performance or functionality. The switch supports IEEE 802.3az Energy-Efficient Ethernet (EEE) which detects when a connected computer is shut down or when there is no Ethernet traffic, in which the switch will proceed to power down the idle port, saving a substantial amount of power.
D-Link
DES-108/B

Data sheet

10G support
No
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports quantity
8
Copper ethernet cabling technology
Ethernet 10GBase-X
Data transfer rate
200 Mbit/s
Depth
102 mm
Heat dissipation
9.548 BTU/h
Height
990mm
Housing material
Zinc steel
Input current
9/4.5 A
Input voltage
–36 - –72 V
MAC address table
96000 entries
Maximum data transfer rate
96 Gbit/s
Mean time between failures (MTBF)
511.323 h
Networking standards
Plug and Play, CE, FCC Class A certified, UL, TUV GS, VCCI, C-Tick, BSMI CNS 13438 Class A
Operating temperature (T-T)
8 - 35 °C
Package height
68 mm
Package weight
998 g
Package width
985.6 mm
Power source
PoE, DC, AC
Storage temperature (T-T)
8 - 85 °C
Supported data transfer rates
x1 115.2 Kbits/sec., x2 230.4 Kbits/sec., x4 460.9 Kbits/sec
Switching capacity
993.6 Gbps
Weight
VFD and cable: 36.6 lb; Pole (each): 50.7 oz; Base: 66.1 lb (VFD and cable: 1.29 lb; Pole (each): 1.79 oz; Base: 2.33 lb)
Width
162 mm
Product colour
White,Black
Shipping (inner) case net weight
6.1 kg
Shipping (inner) case gross weight
7 kg
Pallet gross weight (air)
357.5 kg
Pallet height (air)
2.07 m mm
Pallet gross weight (sea)
357.5 kg
Pallet height (sea)
2.07 m mm
Products per pallet (air)
750 pc(s)
Products per pallet (sea)
750 pc(s)
Compliance certificates
C-TICK, CB, CE, Federal Communications Commission (FCC), ICES, RoHS, VCCI, cUL

Specific References

EAN13
0790069368196

DES-108B.pdf

D-Link D-Link 8-Port Fast Ethernet Unmanaged Desktop Switch Data Sheet

Download (842.72KB)
