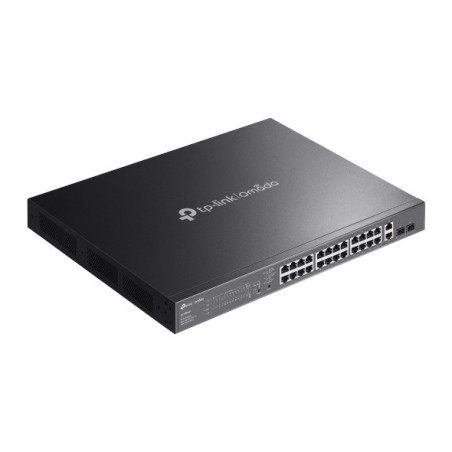

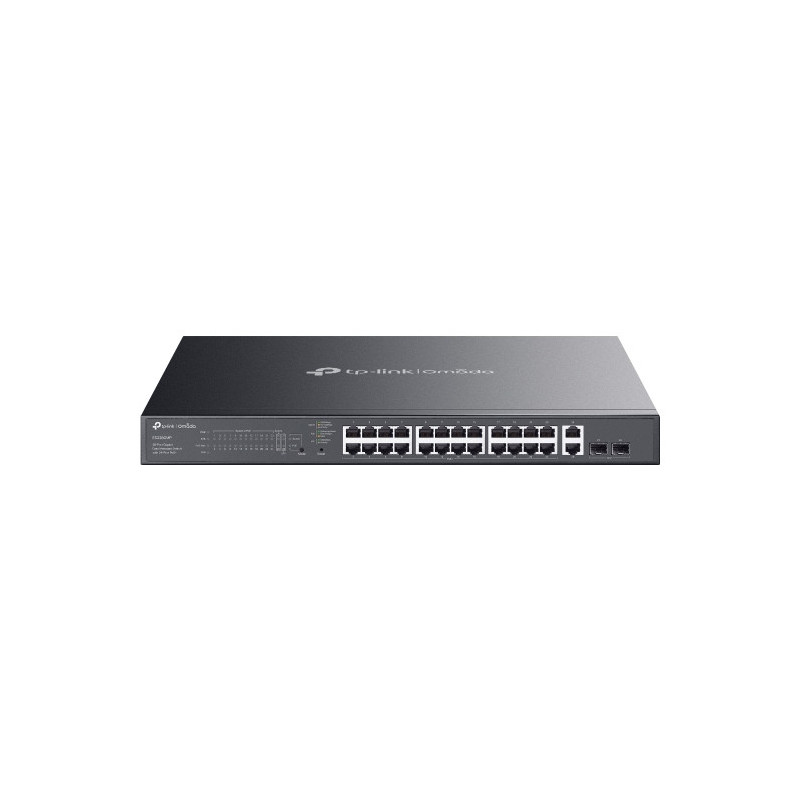

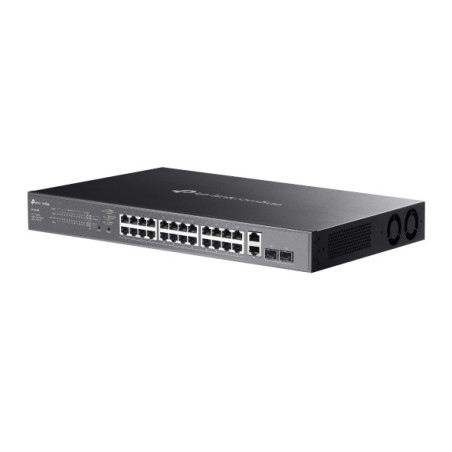

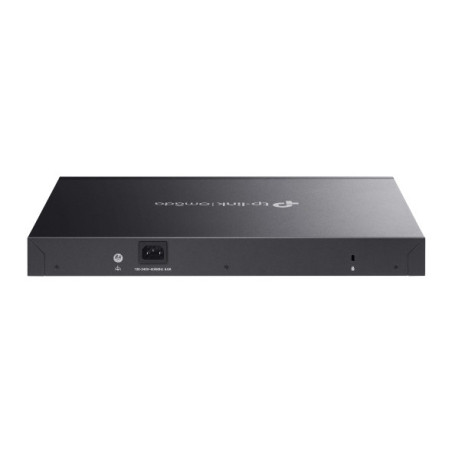

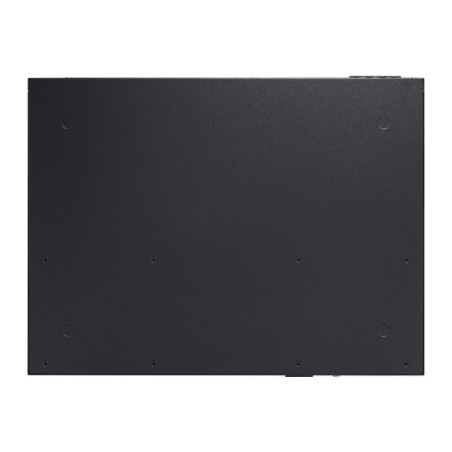

TP-Link ES228GMP

Name: TP-Link ES228GMP
Brand: TP-Link
SKU: ES228GMP

TP-Link Omada ES228GMP, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting

In Stock

Reasons to Buy

26× 10/100/1000Mbps RJ45 ports (24× 802.3af/at-compliant PoE+)
2× Gigabit SFP port
384W Power Budget, with up to 30W for each PoE port
Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
Centralized Cloud Management via the web or the Omada app
Up to 250m PoE, QoS△, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
Automatic Loop Prevention, VLAN, and IGMP Snooping
Durable metal casing and rack-mountable design

Technical Headlines

Managed L2 Web-based management
Quality of Service (QoS) support
Basic switching RJ-45 Ethernet ports quantity: 26
10BASE-T, 100BASE-X, 1000BASE-T, 1000BASE-X
MAC address table: 8000 entries Switching capacity: 56 Gbit/s
Rack mounting
AC Power supply included Power over Ethernet (PoE)

Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

Brand TP-Link

Data sheet

10G support: No
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V
Auto MDI/MDI-X: Yes
Basic switching RJ-45 Ethernet ports quantity: 26
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Cables included: AC
Certification: FCC, CE, RoHS
Copper ethernet cabling technology: 10BASE-T, 100BASE-X, 1000BASE-T, 1000BASE-X
Depth: 330 mm
Ethernet LAN data rates: 10,100,1000 Mbit/s
Firmware upgradeable: Yes
Flash memory: 64 MB
Flow control support: Yes
Gigabit Ethernet (copper) ports quantity: 26
Heat dissipation: 1546.15 BTU/h
Height: 44 mm
Housing material: Metal
LED indicators: Yes
MAC address table: 8000 entries
Manual: Yes
Mean time between failures (MTBF): 224143 h
Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Noise level: 46.2 dB
Number of VLANs: 32
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): -5 - 45 °C
Packet buffer memory: 4 MB
Power over Ethernet (PoE): Yes
Power source: AC
Quality of Service (QoS) support: Yes
Quick start guide: Yes
Rack mounting: Yes
Source data-sheet: Icecat.biz
Storage relative humidity (H-H): 5 - 90%
Storage temperature (T-T): -40 - 70 °C
Store-and-forward: Yes
Switch layer: L2
Switch type: Managed
Switching capacity: 56 Gbit/s
Web-based management: Yes
Width: 440 mm
Product colour: Black
Fanless: No
Cloud-managed: Yes
Power over Ethernet (PoE) type supported: PoE+
Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
Unified static configuration: Yes
