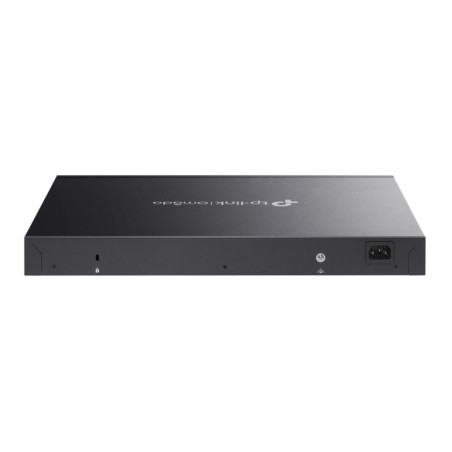

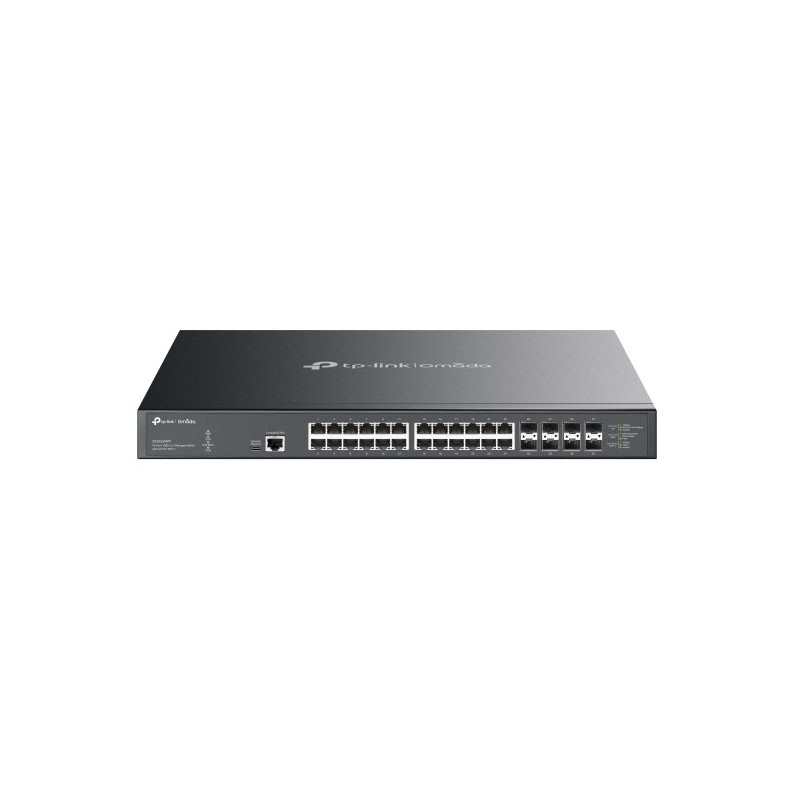

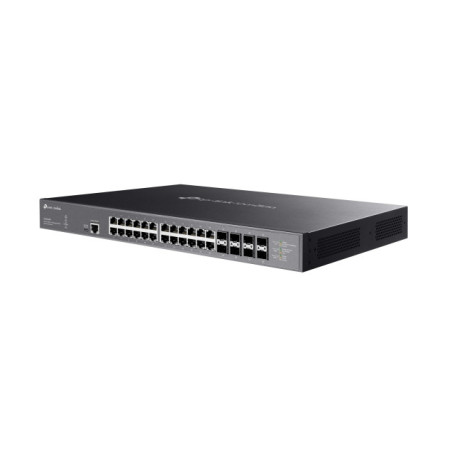

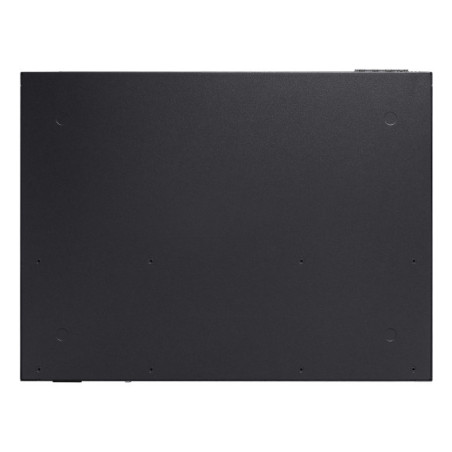

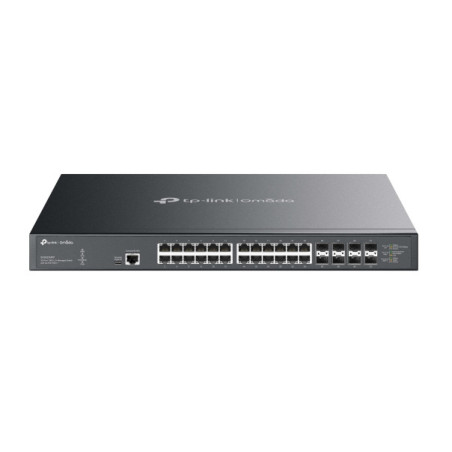

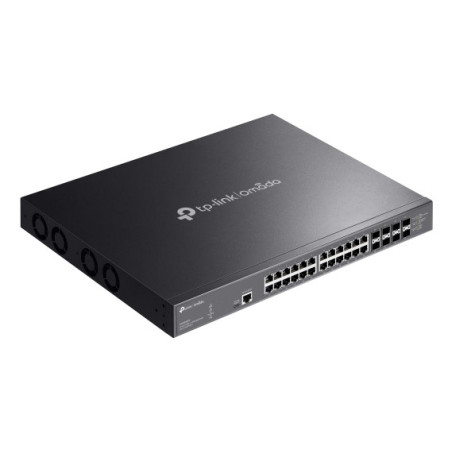

TP-Link Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++

Name: TP-Link Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++
Brand: TP-Link
SKU: SX3832MPP

TP-Link Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++, Managed, L2+, 10G Ethernet (100/1000/10000), Power over Ethernet (PoE), Rack mounting, DIN rail

In Stock

Reasons to Buy

24× 1/2.5/5/10 Gbps RJ45 PoE++ ports
8× 1/10 Gbps SFP+ slots
770 W total PoE budget, up to 90 W PoE out per port**
Centralized cloud management via the web or the Omada app†
Standalone management via web, CLI, SNMP, and RMON
Static Routing helps route internal traffic for higher efficiency
VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
ERPS supports rapid protection and recovery in a ring topology
Durable metal casing and rack-mountable design

Technical Headlines

Managed L2+ Web-based management
Quality of Service (QoS) support Configuring Location Settings (CLI)
Basic switching RJ-45 Ethernet ports quantity: 24 Console port: RJ-45/USB Type-C
10G support
MAC address table: 32000 entries Switching capacity: 640 Gbit/s
Access Control List (ACL)
DIN rail Rack mounting Stackable
AC Power over Ethernet (PoE)

- Empowering the Real Wi-Fi 6 and Wi-Fi 7 with 10G PoE++ Ports
- Easily Build a Whole 10G Multi-gigabit Network

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

Brand TP-Link

Reference SX3832MPP

Data sheet

10G support: Yes
AC input frequency: 50/60 Hz
AC input voltage: 110 - 240 V
Auto MDI/MDI-X: Yes
Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
Cables included: Power
Depth: 330 mm
Firmware upgradeable: Yes
Form factor: DIN rail
Gigabit Ethernet (copper) ports quantity: 24
Heat dissipation: 3444.7 BTU/h
Height: 44 mm
Housing material: Metal
LED indicators: Yes
MAC address table: 32000 entries
MIB support: RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925
Minimum system requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1af, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3x
Number of VLANs: 4000
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): -5 - 45 °C
Packet buffer memory: 24 MB
Power consumption (typical): 953.7 W
Power over Ethernet (PoE): Yes
Power source: AC
Quality of Service (QoS) support: Yes
Quick start guide: Yes
Rack mounting: Yes
Security algorithms: HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS
Source data-sheet: Icecat.biz
Spanning tree protocol: Yes
Stackable: Yes
Storage relative humidity (H-H): 5 - 90%
Storage temperature (T-T): -40 - 70 °C
Switch layer: L2+
Switch type: Managed
Switching capacity: 640 Gbit/s
Web-based management: Yes
Width: 440 mm
Product colour: Black
Fanless: No
Cloud-managed: Yes
IPv4 routes: 48
IPv6 routes: 48
2.5G Ethernet (copper) ports quantity: 24
10G Ethernet (copper) ports quantity: 24
Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
Power over Ethernet 4PPoE (PoE++) ports quantity: 24
Unified static configuration: Yes
Device link detection protocol (DLDP): Yes
Power saving mode (EEE): Yes
Sustainability organizations: Accountability
