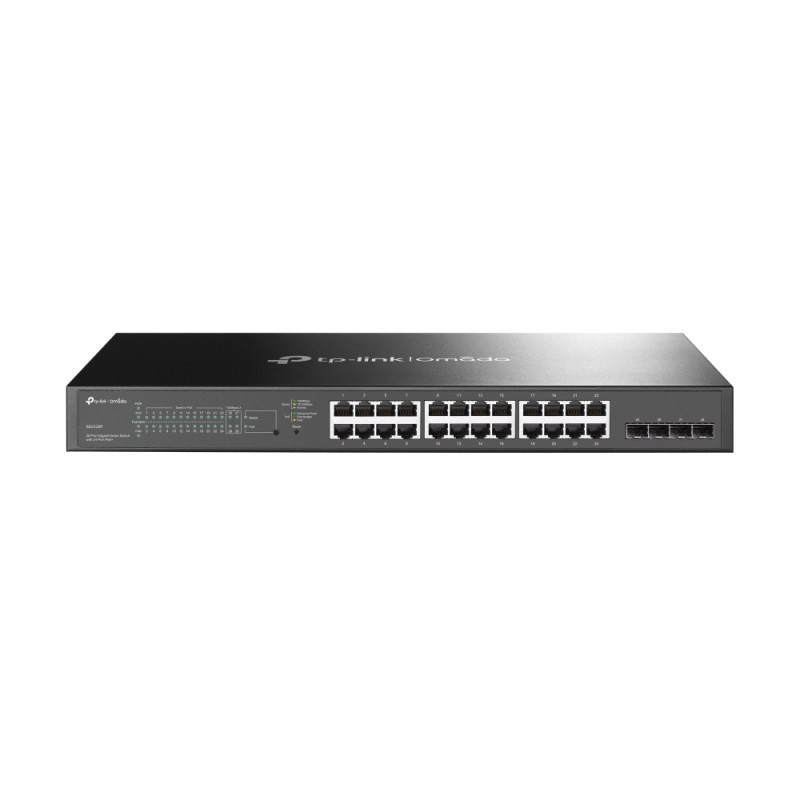

TP-Link Omada 28-Port Gigabit Smart Switch with 24-Port PoE+

Name: TP-Link Omada 28-Port Gigabit Smart Switch with 24-Port PoE+
Brand: TP-Link
SKU: sg2428p

TP-Link Omada 28-Port Gigabit Smart Switch with 24-Port PoE+, Managed, L2/L2+, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U

In Stock

Reasons to Buy

24× Gigabit 802.3af/at PoE+ ports and 4× Gigabit SFP slots
250 W total PoE budget with up to 30 W PoE output per port*
Centralized cloud management via the web or the Omada app†
Standalone management via web, CLI, SNMP, and RMON
Static Routing helps route internal traffic for higher efficiency
VLAN, ACL, QoS, and IGMP Snooping
Durable metal casing and rackmountable design

Technical Headlines

Managed L2/L2+ Web-based management SNMPv1/v2c/v3, SNTP
Quality of Service (QoS) support
Basic switching RJ-45 Ethernet ports quantity: 24
Cat3, Cat4, Cat5, Cat5e 10BASE-T, 1000BASE-T
MAC address table: 8000 entries Switching capacity: 56 Gbit/s
Access Control List (ACL)
1U Rack mounting
AC Power supply included Power over Ethernet (PoE)

TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.

Brand TP-Link

Reference sg2428p

Data sheet

10G support: No
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V
Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Cable types supported: Cat3, Cat4, Cat5, Cat5e
Cables included: AC
Certification: CE, FCC, RoHS
Copper ethernet cabling technology: 10BASE-T, 1000BASE-T
Depth: 220 mm
Height: 990mm
MAC address table: 96000 entries
Management protocols: ЫТЬЗ
Networking standards: Plug and Play, CE, FCC Class A certified, UL, TUV GS, VCCI, C-Tick, BSMI CNS 13438 Class A
Number of VLANs: 8000
Operating temperature (T-T): 8 - 35 °C
Power source: PoE, DC, AC
Security algorithms: WPS,WPS-PBC,WPA,WPS-PIN,WPA2
Storage temperature (T-T): 8 - 85 °C
Switch layer: L7
Switching capacity: 993.6 Gbps
Width: 993 mm
Product colour: White,Black
