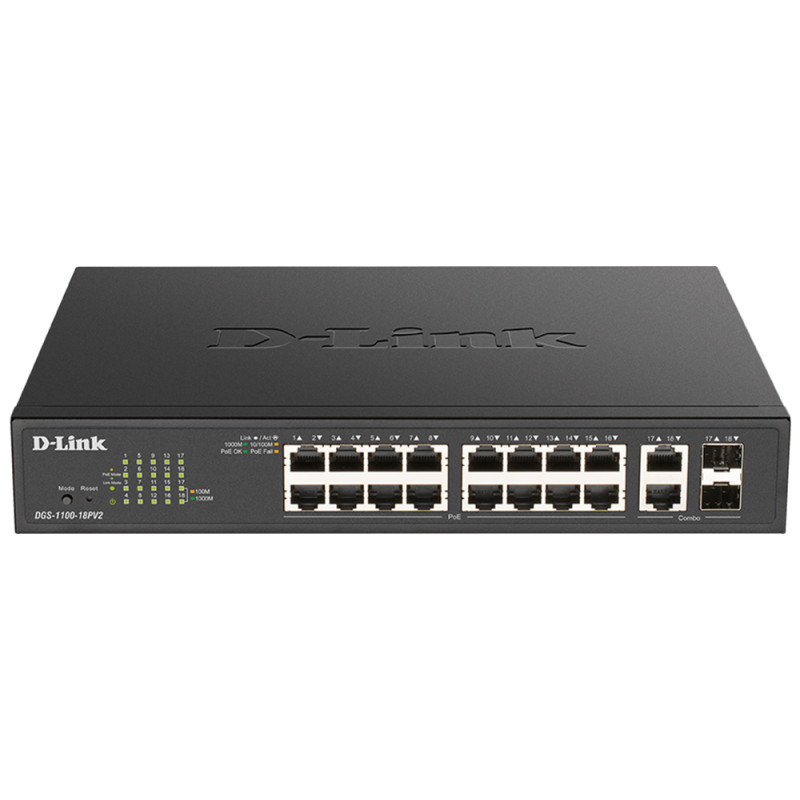

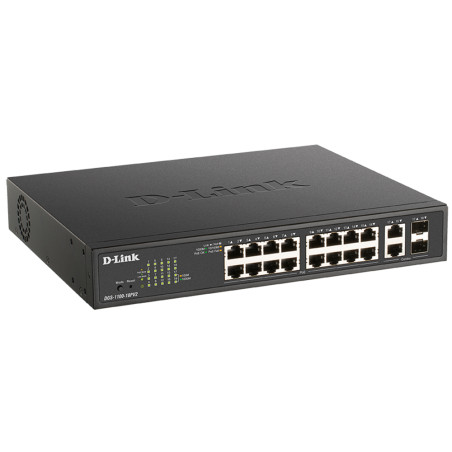

D-Link DGS-1100-18PV2

D-Link DGS-1100-18PV2, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U

In Stock

Description
Product Details

Reasons to Buy

Gigabit Ethernet Speeds
Cutting Edge Green Technology
Manage Anywhere, Anytime

Technical Headlines

Managed L2
Quality of Service (QoS) support
Basic switching RJ-45 Ethernet ports quantity: 16
1000BASE-T
Switching capacity: 36 Gbit/s
1U Rack mounting
DC/PoE Power supply included Power over Ethernet (PoE)

Powerful Switching for your Business
The DGS-1100 Series is a range of powerful switches that offer a lot of bang for your buck. They are great for busy SMBs who expect a lot of their network, including support for surveillance and VoIP. They are packed with traffic management & optimization features that keep your network congestion free. Meanwhile, management tools are flexible and intuitive, making your life easier.

Easy to Use & Easy to Install
D-Link Network Assistant Utility (DNA) can quickly discover and do initial setup for D-Link Networking devices such as the DGS-1100 Series, which greatly improves efficiency for solution deployment.

VLANs: Stronger Security & Better Traffic Management
Relatively easy to set up, VLANs can be a big boon for your network. They can isolate sensitive areas of your network, keeping them safe from those with malicious intent, or keeping bandwidth open for latency-sensitive traffic such as VoIP.

Green Technology
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE.

PD Alive Actively Mitigates Downtime
Round-the-clock surveillance footage is vital. If you have Cameras attached to your network,
you may have thought technical difficulties were a given. However, the PD-Alive feature actively mitigates device downtime. If a device is not working as expected, the Switch can automatically reset them and get them back online. No need to turn them on and off again in the middle
of the night.

Brand D-Link

Data sheet

10G support: No
AC input frequency: 50 - 60 Hz
AC input voltage: 100 - 240 V
Auto MDI/MDI-X: Yes
Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Certification: cUL, UL, LVD, CB, BSMI
Copper ethernet cabling technology: 1000BASE-T
Depth: 230 mm
Electromagnetic compatibility: FCC Class A, CE Class A, VCCI Class A, C-Tick, BSMI
Ethernet LAN data rates: 10,100,1000 Mbit/s
Flow control support: Yes
Form factor: 1U
Full duplex: Yes
Heat dissipation: 125.2 BTU/h
Height: 44 mm
Mean time between failures (MTBF): 343695 h
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
Noise level: 45.8 dB
Number of VLANs: 4094
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -5 - 50 °C
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) ports quantity: 16
Power source: DC/PoE
Quality of Service (QoS) support: Yes
Rack mounting: Yes
Source data-sheet: Icecat.biz
Spanning tree protocol: Yes
Storage relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -40 - 70 °C
Switch layer: L2
Switch type: Managed
Switching capacity: 36 Gbit/s
Weight: 2.1 kg
Width: 280 mm
Product colour: Black
Half duplex: Yes
Compliance certificates: RoHS
