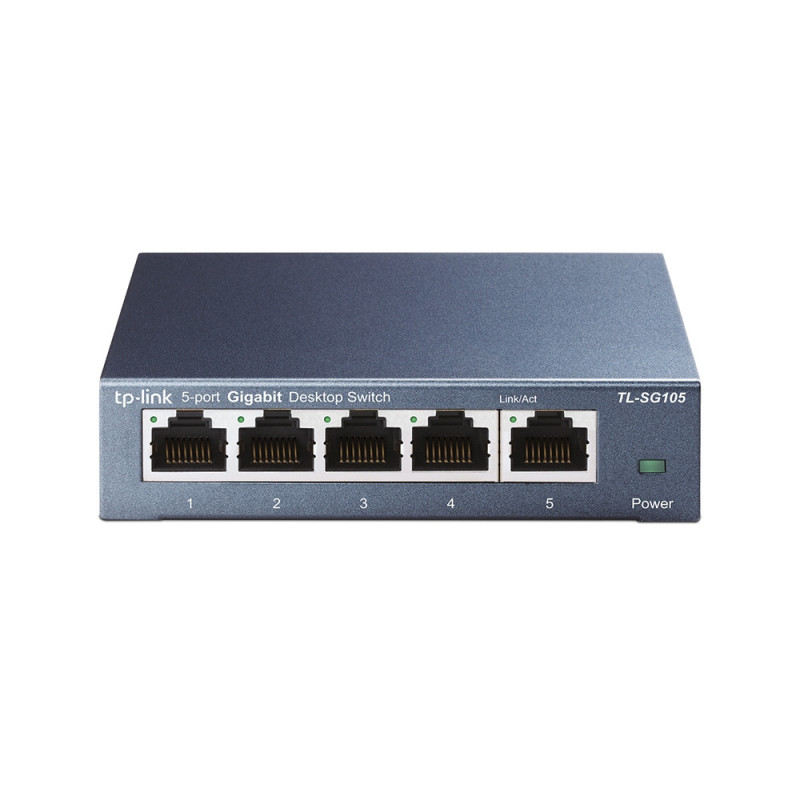

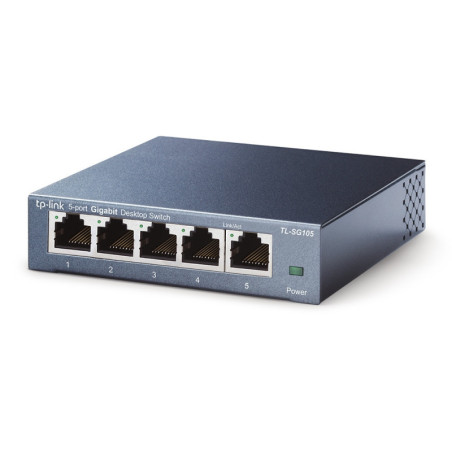

TP-Link TL-SG105

TP-Link TL-SG105, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Full duplex, Wall mountable
In Stock
Reference: TL-SG105
Reasons to Buy
  • 5 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
  • Green Ethernet technology saves power consumption
  • IEEE 802.3x flow control provides reliable data transfer
  • Steel housing, desktop or wall-mounting design
  • Support 802.1p/DSCP QoS and IGMP Snooping function
  • Plug and play, no configuration


Technical Headlines
  • Unmanaged L2
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 5
  • Cat3, Cat4, Cat5, Cat5e 10BASE-T, 100BASE-TX, 1000BASE-T
  • MAC address table: 2048 entries Switching capacity: 10 Gbit/s
  • Power supply included


What This Product Does

The TP-Link 5-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Plug and Play design, with no configuration required, makes the product easy to use. Moreover, TL-SG105S adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG105S can save power consumption, making it an eco-friendly solution for your home or office network.

Gigabit Switch

Featured with 5 10/100/1000Mbps ports, TL-SG105S greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Go Green With Your Ethernet

You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG105S 5-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Traffic Optimization

802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping optimizes the Multicast data stream.

Easy to use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Moreover, fanless design ensures quiet operation.
TP-Link
TL-SG105

Data sheet

10G support
No
AC input frequency
50 Hz
AC input voltage
220 V
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Cable types supported
Cat3, Cat4, Cat5, Cat5e
Cables included
AC
Certification
CE, FCC, RoHS
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Depth
98 mm
Height
990mm
Housing material
Zinc steel
Input current
9/4.5 A
MAC address table
96000 entries
Networking standards
Plug and Play, CE, FCC Class A certified, UL, TUV GS, VCCI, C-Tick, BSMI CNS 13438 Class A
Operating temperature (T-T)
8 - 35 °C
Storage temperature (T-T)
8 - 85 °C
Switch layer
L7
Switching capacity
993.6 Gbps
Width
993 mm
Product colour
White,Black

Specific References

EAN13
1210002613248

TL-SG105.pdf

TP-Link TL-SG105 Data Sheet

Download (358.42KB)
