TP-Link TL-SF1008D

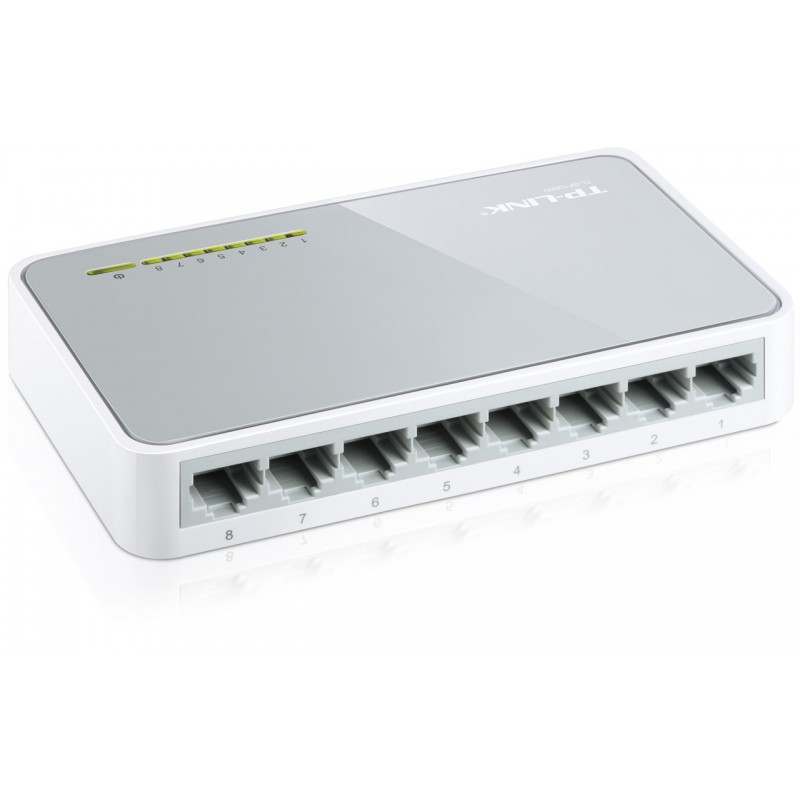

TP-Link TL-SF1008D, Unmanaged, Fast Ethernet (10/100), Full duplex
In Stock
Reference: TL-SF1008D
Reasons to Buy
  • 8 10/100Mbps auto-negotiation RJ45 ports, supports auto MDI/MDIX
  • Green Ethernet technology saves power consumption
  • IEEE 802.3x flow control provides reliable data transfer
  • Plastic case, desktop design
  • Plug and play, no configuration required


Technical Headlines
  • Unmanaged
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • 10BASE-T, 100BASE-TX
  • MAC address table: 1000 entries Switching capacity: 1.6 Gbit/s


What This Product Does
The TL-SF1008D Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users.. All 8 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1008D can save up to 60% of the power consumption and 70% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

High Performance
TL-SF1008D Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, TL-SF1008D forwards and filters packets at full wire-speed for maximum throughput. With 10K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1008D work reliably.

TP-LINK Green Technology
This new generation TL-SF1008D Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 70% of the packaging material can be recycled.

Easy to Use
The auto features of this switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.
TP-Link
TL-SF1008D

Data sheet

10G support
No
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Certification
FCC, CE, RoHS
Copper ethernet cabling technology
10BASE-T, 100BASE-TX
Flow control support
Yes
Full duplex
Yes
LED indicators
Yes
MAC address table
1000 entries
Networking standards
IEEE 802.3u, IEEE 802.3x
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Packet buffer memory
2 MB
Power over Ethernet (PoE)
No
Quick start guide
Yes
Source data-sheet
Icecat.biz
Storage relative humidity (H-H)
5 - 95%
Storage temperature (T-T)
-40 - 70 °C
Store-and-forward
Yes
Supported network protocols
CSMA/CD, TCP/IP
Switch type
Unmanaged
Switching capacity
1.6 Gbit/s
Product colour
White
Harmonized System (HS) code
85176990

Specific References

EAN13
1210002616348

TL-SF1008D.pdf

TP-Link TL-SF1008D Data Sheet

Download (1.4MB)
