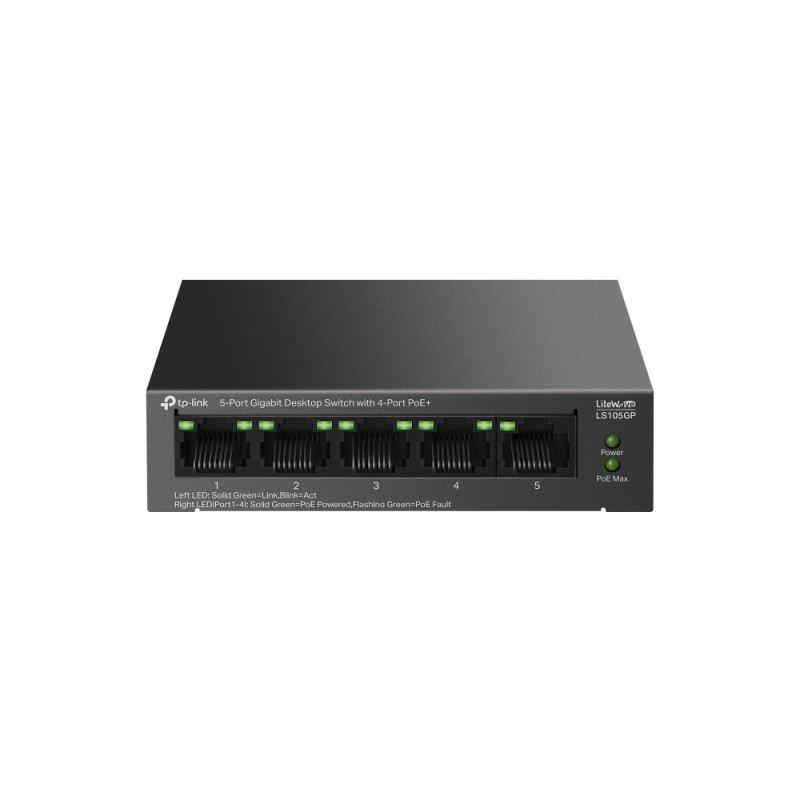

TP-Link 5-Port Gigabit Desktop Switch with 4-Port PoE+

Name: TP-Link 5-Port Gigabit Desktop Switch with 4-Port PoE+
Brand: TP-Link
SKU: ls105gp

TP-Link LiteWave 5-Port Gigabit Desktop Switch with 4-Port PoE+, Unmanaged, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)

In Stock

Reasons to Buy

Full Gigabit Ports: Five gigabit augo-negotiation ports provide up to 10 Gbps switching capacity
65 W PoE Budget: Four gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.*
Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.**
PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices
Plug and Play: Simply plug and play for instant connectivity with no configuration required
Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses

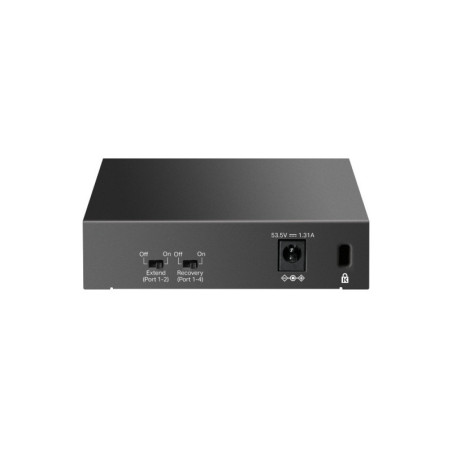

Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments

Technical Headlines

Unmanaged
Quality of Service (QoS) support
Basic switching RJ-45 Ethernet ports quantity: 5
Cat3, Cat5e, Cat4, Cat5
MAC address table: 2000 entries Switching capacity: 10 Gbit/s
DC/PoE Power supply included Power over Ethernet (PoE)

Overview
The TP-Link LiteWave Series PoE Switches require no configuration and provide PoE (Power over Ethernet) ports. They can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

Brand TP-Link

Reference ls105gp

Data sheet

10G support: No
AC input frequency: 50 Hz
AC input voltage: 220 V
Auto MDI/MDI-X: Yes
Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Cable types supported: Cat3, Cat5e, Cat4, Cat5
Certification: CE, FCC, RoHS
Depth: 98 mm
Height: 990mm
MAC address table: 96000 entries
Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Operating temperature (T-T): 8 - 35 °C
Power over Ethernet (PoE) ports quantity: 96
Power source: PoE, DC, AC
Storage temperature (T-T): 8 - 85 °C
Switching capacity: 993.6 Gbps
Width: 99.8 mm
Product colour: White,Black
